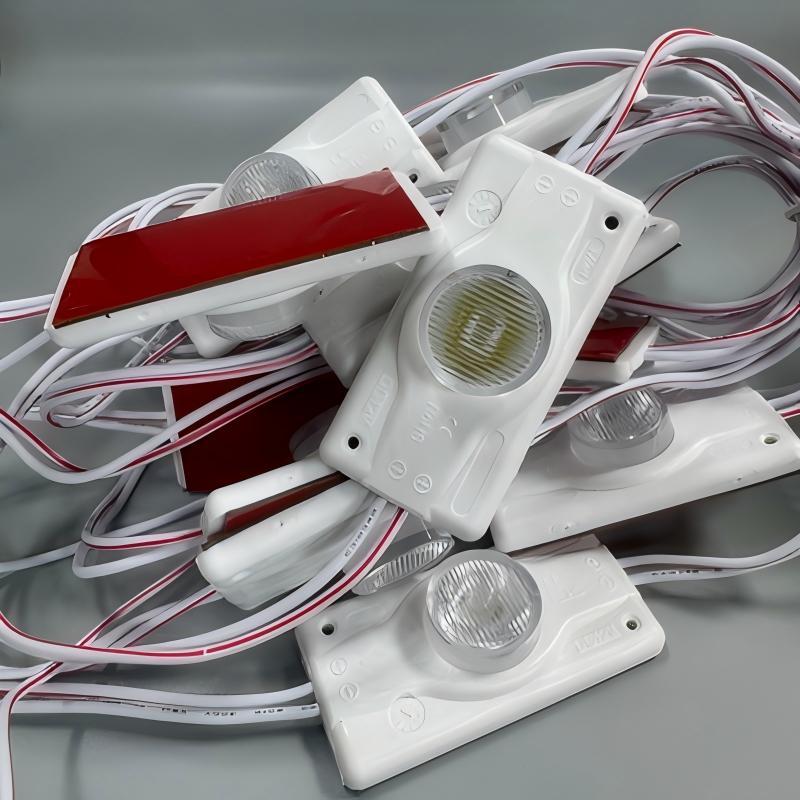

3W 3535 SMD LED Edge Lit Module 12V Injection Type for Lightbox Signage CE RoHS
Our 12V 3W LED modules are specially designed for high-impact double-sided lightbox applications.
Built with premium components, including high-brightness 3535 LED chips and durable, heat-dissipating PCB boards, they ensure stable performance, excellent thermal management, and long service life.
The side-emitting optical structure is optimized for even light distribution inside double-sided lightboxes, reducing shadows and hot spots. This creates bright, uniform, and visually striking illumination, ideal for commercial signage, channel letters, and illuminated advertising boxes.
Product Parameters
| Model No. |
LED |
color |
CCT (K) |
voltage |
power |
LM |
Effect
(LM/W) |
Angle |
| 3535 1led module |
SMD3535 |
White |
2700~6500K |
12V/24V |
3W |
300 |
100 |
15X45° |
| 7000~10000K |
| Connection Qty |
Shell color |
Drive method |
Weight (g/100pcs) |
Warranty |
W T(℃) |
S T(℃) |
IP Level |
| 20pcs |
White |
Constant voltage/current |
870 |
5Years
Or 50000H |
-25-+60 |
-25-+80 |
IP65 |
Product Feature
- Equipped with high-brightness SMD 3535 LED chips for strong and stable illumination
- Aluminum PCB board design for excellent heat dissipation and long lifespan
- Constant current driving system ensures stable performance across LED strings
- 20 modules per string for easy installation and flexible wiring in signage applications
Led module Applications
This 12V 3W edge LED module series is specially designed for side-emitting illumination, delivering bright and uniform lighting for a wide range of signage applications. Whether for new installations or LED retrofit upgrades of existing sign boxes, these side-lighting solutions provide a cost-effective, energy-efficient, and eco-friendly upgrade option.
For modern retail and advertising environments, these LED side-light box modules are ideal for slim double-sided displays. They integrate seamlessly into double-sided aluminum LED lightbox structures, achieving consistent brightness on both sides with fewer modules and lower power consumption.
FAQ
- MOQ: 1000pcs after Free Samples test
- Delivery time: 3-5 working days for sample,7-15 days for mass order.
- Warranty: 5-7 years since the date of shipment.
